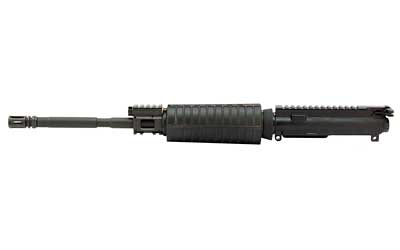

CMMG 6.8 SPC M4-LEP II Gas Piston Complete Upper


6.8 caliber version

Gas Piston systems operate cleaner then the direct gas impingement operating systems. With the piston system, the propellant gases that are being diverted at the gas block are now vented at the gas block, instead in the operating system of the upper receiver. Since the fouling from the gas system is not being vented in to the action of your firearm, it stays cooler and cleaner. Our system is designed around the short stroke piston operation. The piston pushes the anti tilt one piece carrier, which unlocks the bolt and allows the piston to return home while the bolt carrier continues to cycle independently.

The upper is built off of our standard forged A3 receiver with M4 feed ramps. The chrome plated gas piston is mounted in a solid one piece steel gas block attached to the barrel by pins. The dedicated, piston specific, anti-tilt bolt carrier is one piece, machined with the piston impingement key(not a bolt on). The carrier uses our standard Mil-Spec bolt.

The barrel is our 4140 chrome-moly vanadium steel barrel, M4 profile, 6.8x43 SPC SPEC II chamber and bore, 1/11 twist ratio and 1/2x36 threaded barrel and our proprietary WASP surface treatment. The upper is finished with M4 handguard caps, M4 handguards and an A2 flash hider installed with a crush washer.

The piston gas block has a gas shut off setting for use with a suppressor to allow for maximum noise reduction. You must replace the crush washer with a peel washer if you plan to mount your suppressor on the original flash hider. Fits on any standard Mil-Spec lower receiver. All uppers have been factory head spaced and test fired. There are no upgrade options available with this model. Nickel Teflon bolt carriers are discontinued and will come with a phosphated carrier.

Contact Us

To be notified when this product is back in stock please click here.

  • Model: CMMG10247
  • Shipping Weight: 6lbs
  • Manufactured by: CMMG
